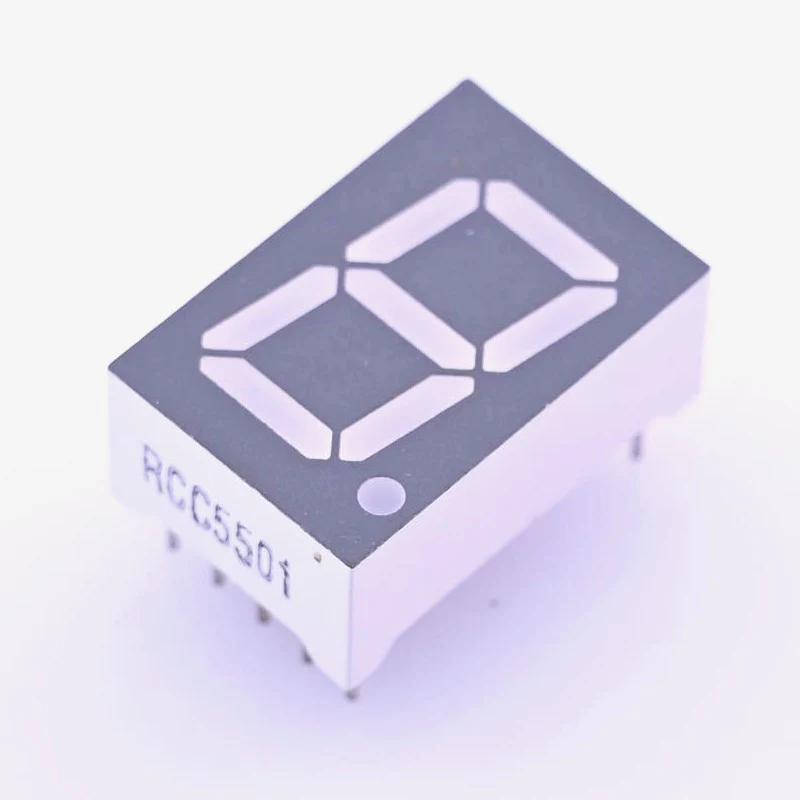

Evenly lighted segments
Common- Cathode Circuitry
Color : Red
Wide Viewing angle, ± 50 ° angle
Luminous intensity: 2800 to 9000 ucd
Wavelength: 612 to 625 nm
Typical forward voltage : 2V
Current Consumption : 30mA/segment
Peak Current :70mA
Package: 13mm

Key Features:

Type: Quad 2-Input AND Gate
Package: DIP-14
Logic Family: 74HC (High-Speed CMOS)
Operating Voltage: 2V to 6V
Low Power Consumption: CMOS technology ensures low static power consumption
High-Speed Operation: Fast propagation delay
Wide Operating Temperature Range: -40°C to +85°C

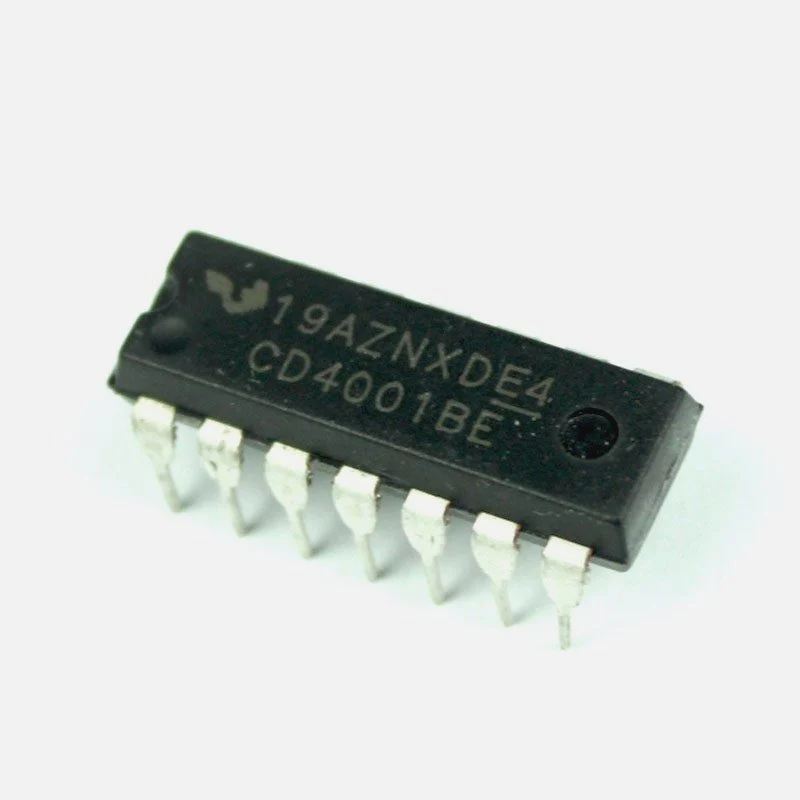

CD4001 IC Specifications

4 NOR gates present.
DIP Package
Operating Voltage Range 5-20V
Universal gate

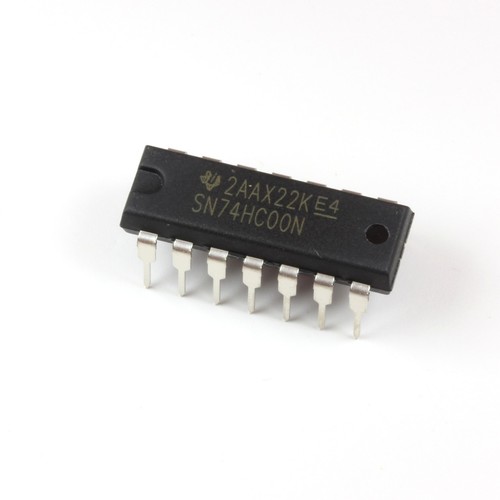

Features of 74HC00 Quad 2-input NAND Gate IC

Implementation of NAND Function
Buffered inputs and Outputs
DC supply Voltage range : 2V to 6V
Operating Temperature : -40 to 125 °C
